The TG-6 has a bright 25-100mm mid-range zoom lens and a high-speed back-lit CMOS image sensor for excellent performance in low-light settings. The microscope mode has been improved since the previous TG-5 model and is capable of macro close-up images that are as good as if not better than expensive full-frame DSLR cameras.

The TG-6 supports ultra HD 4K video and RAW image capture, which is a powerful tool for post-dive color corrections using either Adobe Lightroom or the included software. The TG-6 is waterproofed to 50' (15.2m) even without a housing, which makes set-up a little less stress-inducing.

Construction

Our specially formulated ABS-PC blend housing is highly durable yet lightweight for travel. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens Support

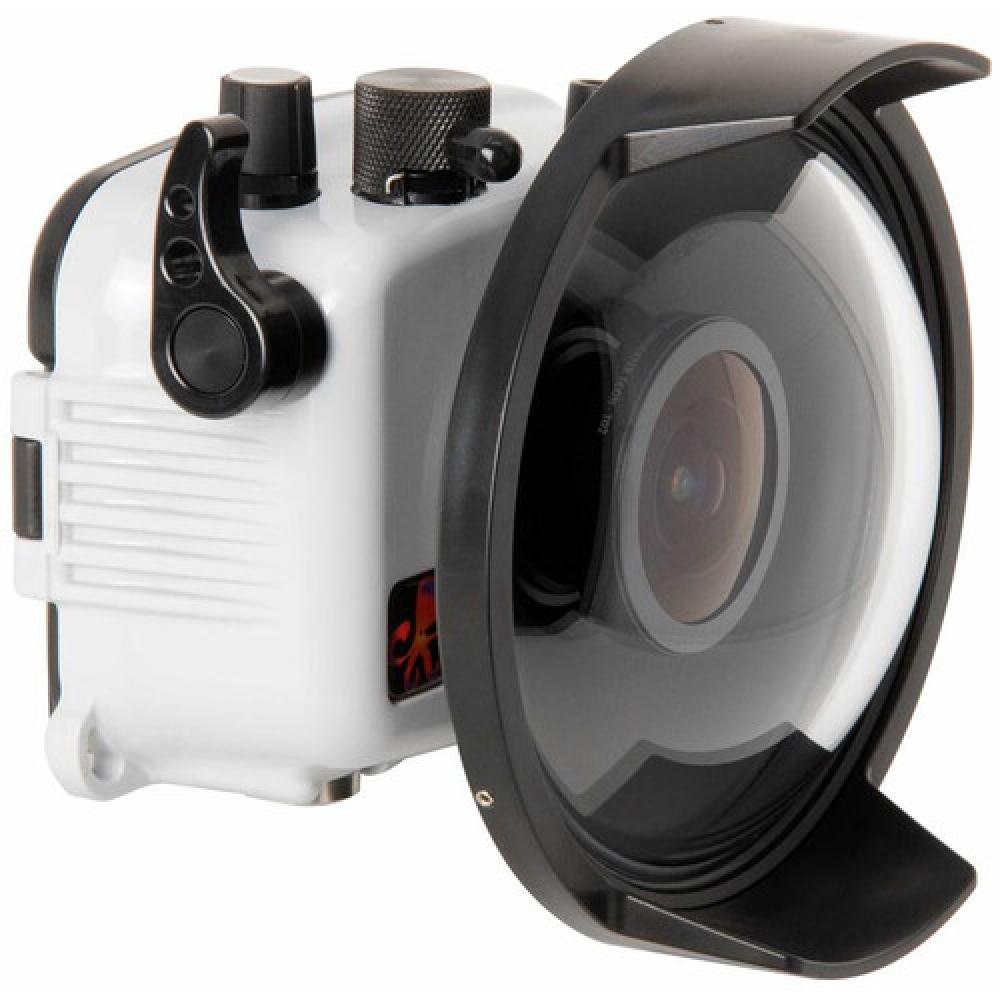

The DC1 6" Dome Port # 6401 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 25mm wide angle, full zoom through and macro capabilities, and is perfect for split shots (half-in, half-out of the water).

The WD-3 Wide Angle Dome # 6430.3 attaches to the front of the standard port and provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The W-30 Wide Angle Lens # 6430, INON UWL-H100, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads from INON, Epoque, and other manufacturers, can be attached directly to the front of the housing's port.

Flash Options

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Any current model Ikelite DS strobe can be triggered fiber optically with true automatic Olympus TTL exposure using the RC1 TTL Receiver # 4412 and Fiber Optic Cord # 4501.

Wi-Fi Transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.

In the Box

Ikelite Underwater Housing # 6233.06
Olympus Stylus TOUGH TG-6 Digital Camera (Red)

Camera includes:
Olympus LI-92B Rechargeable Lithium-Ion Battery (3.6V, 1350mAh)
Olympus CB-USB8 Cable (26")
Olympus F-2AC AC Adapter
Olympus Wrist Strap
Olympus Software CD-ROM
